In the realm of industrial automation, seamless communication between devices is critical for ensuring efficiency, reliability, and real-time control. The GE Fanuc IC200PBI001, a Profibus-DP Network Interface Unit (NIU) designed for the VersaMax series, stands out as a powerful solution for integrating I/O modules into Profibus networks.

What Is the IC200PBI001?

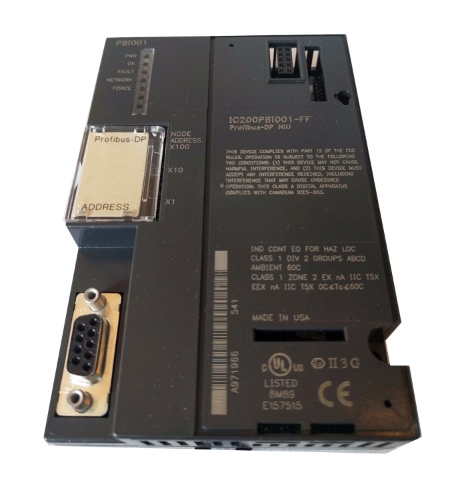

The IC200PBI001 is a slave device on a Profibus-DP network, acting as a controller for up to 64 VersaMax I/O modules. It bridges the gap between local I/O systems and a Profibus master device (e.g., a PLC or HMI), enabling automated data exchange, diagnostics, and control. Its compact design and rugged build make it ideal for demanding industrial environments, such as manufacturing plants, energy facilities, and process automation systems.

Key Features

1. Flexible Network Configuration

• Address Range: The NIU supports Profibus addresses from 1 to 125, allowing easy integration into existing networks.
• Data Rate: It automatically detects network speeds ranging from 9.6 Kbaud to 12 Mbaud, ensuring compatibility with diverse master devices.
• Connector Type: A 9-pin D-sub connector simplifies physical connections, while the module’s DIN rail mountability enhances installation flexibility.

2. Comprehensive I/O Support

• Capacity: The IC200PBI001 handles up to 375 bytes of I/O data, split between inputs (244 bytes) and outputs (244 bytes). This scalability suits applications requiring high-density analog or digital I/O.
• Module Compatibility: It works seamlessly with all VersaMax High-Density Analog Modules, making it versatile for mixed-signal setups.

3. Robust Diagnostics and Monitoring

The front panel features five LED indicators for real-time status feedback:

• PWR (Green): Indicates power supply is active.
• OK (Green): Confirms firmware is functional.
• FAULT (Amber): Alerts users to internal faults or I/O module issues.
• NETWORK (Green/Amber/Off):
  • Green: Successful I/O transfer.
  • Amber: Master configuration rejected.
  • Off: No communication with the master.
• FORCE (On/Off): Shows if any I/O values are manually overridden.

These LEDs empower technicians to troubleshoot issues quickly without relying on external tools.

4. Power Efficiency

The NIU consumes 250 mA from the 5V bus and 10 mA from the 3.3V bus, minimizing power draw in large-scale deployments. A dedicated power supply module mounts directly onto the NIU, simplifying wiring and reducing clutter.

Technical Specifications at a Glance

• Dimensions: 120 × 50 × 90 mm
• Weight: 0.31–0.55 kg (depending on source)
• User Diagnostics Memory: 5 bytes
• Expansion: Supports additional I/O modules via expansion racks.
• Warranty: Typically 1–2 years (varies by supplier).

Practical Applications

The IC200PBI001 excels in scenarios requiring:

• High-Speed Data Exchange: Its auto-detected baud rates ensure minimal latency in time-sensitive processes.
• Scalability: Managing 64 I/O modules per NIU reduces the need for multiple interfaces, cutting costs and complexity.
• Remote Diagnostics: The LED indicators and diagnostic memory simplify predictive maintenance, reducing downtime.

For example, in a food processing plant, the NIU could connect temperature sensors, motor controllers, and valve actuators to a central PLC, enabling precise control over production lines. Its fault alerts would help operators address issues like sensor failures or communication drops before they escalate.

Why Choose the IC200PBI001?

• Proven Reliability: GE Fanuc’s reputation for industrial-grade hardware ensures long-term performance.
• Ease of Use: Intuitive LEDs and auto-configuration reduce setup time.
• Cost-Effectiveness: Its high I/O capacity per module lowers the total cost of ownership.

The GE Fanuc IC200PBI001 remains a cornerstone of Profibus-DP networks, offering a blend of flexibility, diagnostics, and power efficiency. Whether you’re upgrading legacy systems or designing new automation architectures, this NIU provides a dependable foundation for seamless device communication.

For engineers seeking a robust, scalable, and user-friendly interface, the IC200PBI001 is undoubtedly worth considering. Its ability to handle complex I/O configurations while simplifying troubleshooting makes it a timeless asset in industrial automation.
